An HVAC system, which stands for Heating, Ventilation, and Air Conditioning, is much more than just a way to make a room warmer or cooler. It is a comprehensive, centralized technology system responsible for a building's indoor environment, controlling temperature, humidity, and air quality to create and to maintain a comfortable, healthy, and safe space. Its primary functions are to control temperature, improve air quality, and manage humidity levels for the occupants of a building or a specific industrial process.
HVAC systems are essential in virtually all modern buildings, from homes and offices to factories and hospitals, because they provide a stable climate for occupants and protect sensitive equipment.
The Main Functions of an HVAC System
An HVAC system achieves its goals through the careful management of three key environmental factors:
Heating and Cooling: This is the most recognized function. During hot weather, the system uses a refrigeration cycle to remove heat from the indoor air. This cooled air is then circulated throughout the building. In cold weather, the system adds heat to the air before circulating it.
Ventilation: This involves the exchange of indoor and outdoor air. Ventilation removes stale, contaminated indoor air and replaces it with fresh, filtered outdoor air. This is crucial for diluting airborne pollutants and maintaining high indoor air quality.
Air Quality and Humidity Control: Beyond simply cooling or heating, an HVAC system is vital for managing the air's properties. This includes filtering out dust, allergens, and other particulates. Critically, it also performs RH control (Relative Humidity control), humidity control, and moisture control. During the cooling process, the air passing over cold coils condenses and drains away moisture, actively dehumidifying the space. In dryer climates or seasons, humidifiers can be integrated to add moisture back into the air, preventing issues like dry skin or static electricity.
How an HVAC System Works

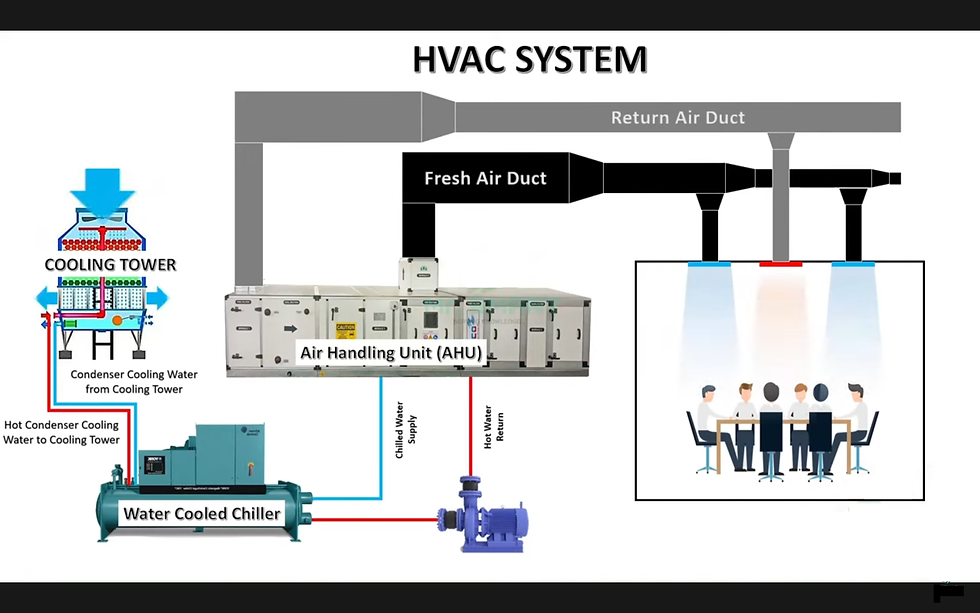

The fundamental components of an HVAC system work together in a coordinated cycle. At the heart of the system is the chiller, which produces chilled water. This chilled water is then pumped to an Air Handling Unit (AHU), where it passes through cooling coils. As the air from the building is blown over these coils, it is cooled and dehumidified. This conditioned air is then distributed to different rooms or "zones" through a network of ducts.
Intelligent components like Energy Valves and Variable Speed Drives (VSDs) play a critical role in optimizing this process. They ensure that the system only uses the precise amount of energy needed to meet the cooling, heating, and humidity control demands of each space. This avoids wasteful over-pumping or excessive cooling, leading to significant operational cost savings.
Whether for an office building, a cleanroom, a manufacturing facility, a hospital, a data center, or a factory, a properly designed and maintained HVAC system is essential. It provides a stable and consistent environment that is comfortable for people and optimal for sensitive equipment and processes.
Key Components of an HVAC System
An HVAC system is an integrated network of components working together. While the specific setup can vary, a typical system includes:
Heating and Cooling Equipment: This is the core of the system.
Heating: Boilers, furnaces, and heat pumps generate warmth by burning fuel or extracting heat from the air.

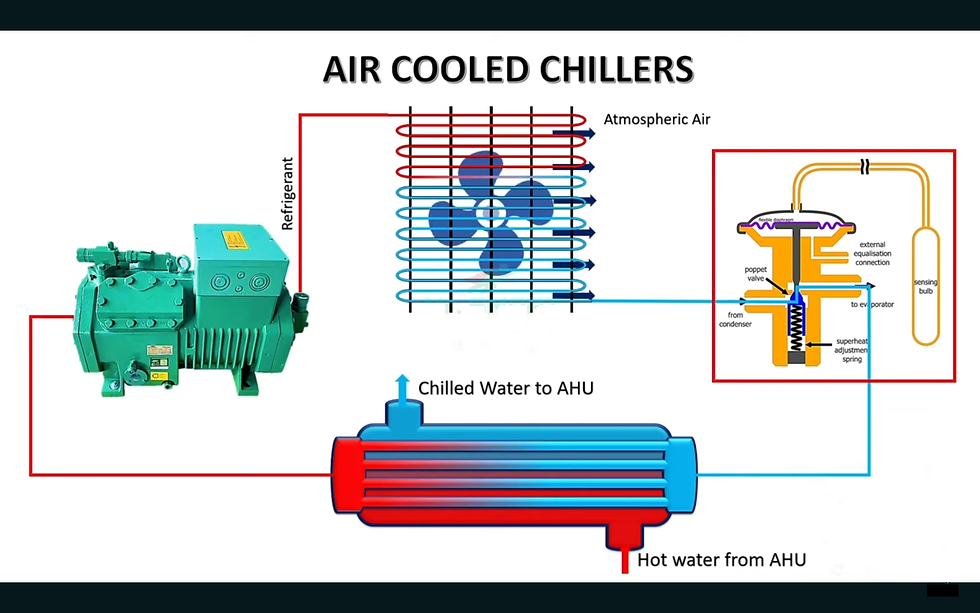

Cooling: Chillers and air conditioners remove heat from the indoor air using a refrigerant cycle.
Air Handling Unit (AHU): This unit is a large metal box containing a fan, heating and cooling coils, and air filters. It's responsible for pulling in air, conditioning it, and pushing it through the ductwork.
Ductwork: A network of tubes or pipes that distributes heated or cooled air throughout the building.
Thermostats and Controls: These are the "brains" of the system. Thermostats measure the temperature and send signals to the HVAC equipment to turn on or off, while a building management system (BMS) can provide centralized control over the entire system.
Valves and Dampers: These components control the flow of air and fluids (like chilled water or steam) within the system. They are crucial for ensuring the right amount of heating or cooling is delivered to each zone of a building.
The fundamental operation of an HVAC system can be broken down into a few key steps:
Intake: The system pulls in air, both from the building's interior (return air) and, in many cases, fresh air from the outside. 💨
Filtration: This air first passes through a filter, which traps dust, pollen, and other airborne particles to improve indoor air quality.
Conditioning: The filtered air is then either heated or cooled, depending on the season and the temperature set on the thermostat.
Heating: A furnace or boiler generates heat, which is transferred to the air.
Cooling: An air conditioner or heat pump uses a refrigerant cycle to remove heat and moisture from the air. This process involves the refrigerant absorbing heat indoors and releasing it outdoors.
Distribution: Once conditioned, a powerful fan (or blower) pushes the air through a network of ducts and vents, distributing it to different rooms or zones of the building.
Exhaust: Stale or contaminated air is then exhausted from the building, ensuring a continuous exchange of air to maintain healthy oxygen levels.
This video helps explain how HVAC systems are used for temperature and humidity control.
